Vehicle Description

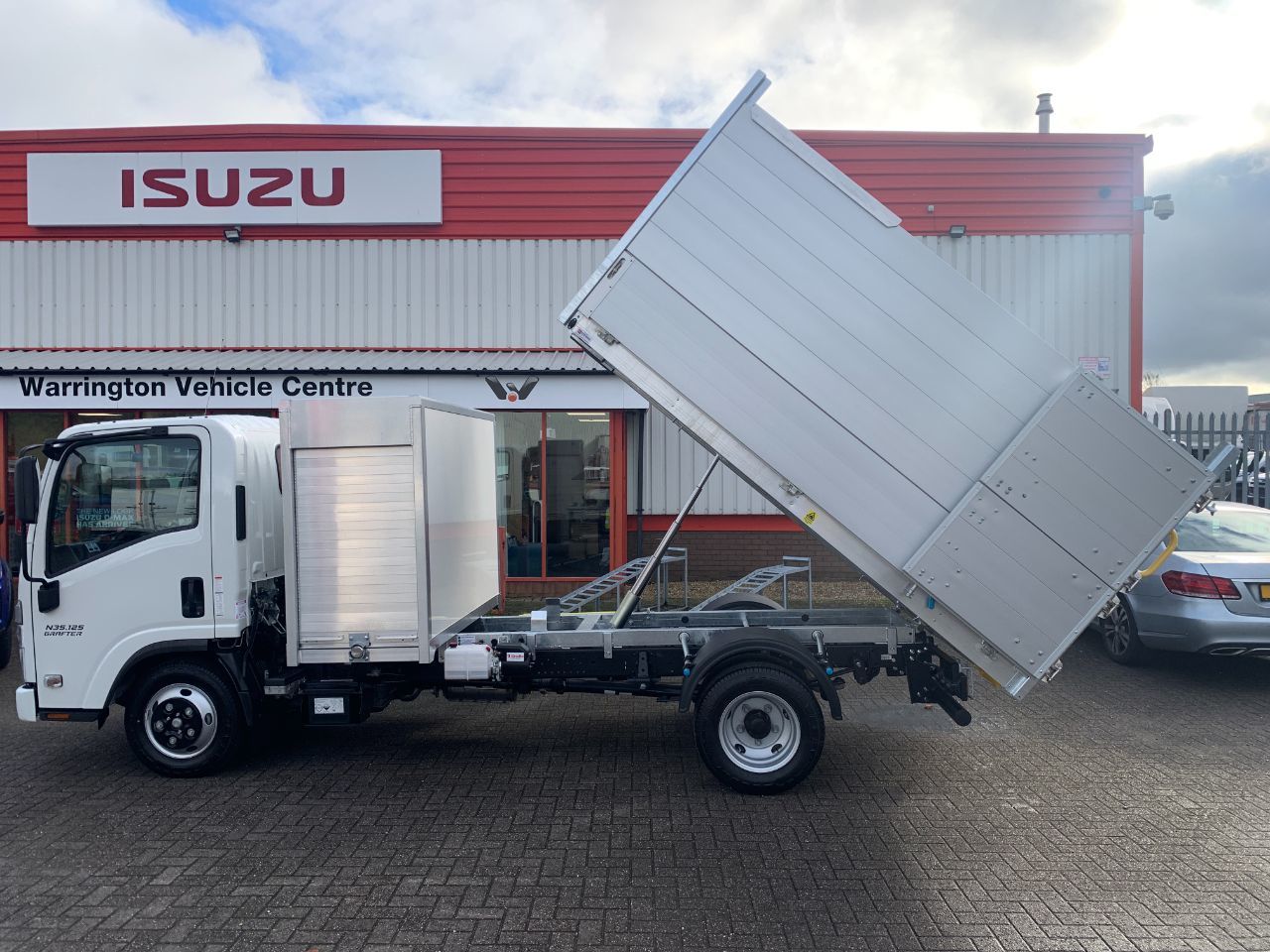

Isuzu Trucks N35.125 T LWB Grafter Arb Tipper - IN STOCK AND READY TO GO
BRAND NEW with all Alloy Arborist Tipper body complete with forward mounted full body width tool box with side roller shutters
Vehicle complete with 3 years Unlimited Mileage warranty and Isuzu Assist Package.

Arbor Tipper Dimensions
External length: 3215 mm
External Width: 1980 mm
Height of Sides: 1400 mm
Arbor Tipper Specification
● Fully Galvanised Steel Sub Frame
● Hydro electric Underfloor tipping gear with under floor ram and wander lead controls
● Ally Plank Flooring
● Alloy side raves incorporating 3prs of lashing rings
● Fully Galvanised Headboard with Corrugated alloy lower infill
● Upper headboard infill; Corrugated alloy
● Headboard to have 150mm ladder ears and timber protector
● 400mm Alloy one piece side boards with Anti-loose fasteners
● 600mm Alloy hollow plank, lower barn doors with locking door gear
● Anodised finish to the sides and Rear Planking
● LED marker lights (if required)
● Plastic Mudwings with Armour Tech coated Wing stays
● Sideguards not required
● Type approved Under-run bar supplied with vehicle
● Body Prop, All safety Decals and Max height sticker
● User Guide for Tipper controls

Arbor Pack
● 1000mm high - alloy plank sides fixed to front pillars
● 700mm upper barn doors with stainless hinges and Single door gear
● Fixed top bar across the rear. With 150mm Ears
● 1000mm deep roof flap, with side wedges

Tool-pod
● Toolpod mounted behind cab, 1980mm x 780mm x 1445mm High
● Alloy Narrow lathe shutter To N/S and O/S with key only lock
● Shutter and lock recessed Below floor to provide additional security.
● Constructed from Lightweight Panels and alloy framework
● 22mm lightweight scuffa-deck floor - plastic welded
● Sides and roof made from one complete panel and plastic welded together to provide a fully sealed lightweight box
● Panels in a white painted finish - sides in mill alloy
● Single full width shelf made from lightweight scuffa-deck flooring

BODY TYPE APPROVAL FOR REGISTRATION

ANCILLARY EQUIPMENT
2 x Rear lamp protectors
50mm Ball and Pin tow-bar rated to 3500kg with 12v 13 pin electrics
